Training Center Visit

Feb 20, 2007 Bi-annual visit to the $16 Million Flight Simulator. Microsoft, eat your heart out!
It's never routine. Even the inevitable emergencies aren't routine. Different instructor, different sim partner, slightly different sim behavior and older brain cells, all add variety. Here is one account of a trip to "the box" that was actually rather enjoyable.

Bad Engine, Bad Engine!

One emergency you can count on is the "V1 cut."  It's where the sinister instructor clears you for takeoff and watches blissfully with his hand poised on...the button.

Every takeoff is calculated with a decision speed called V1. It gives the best margin while considering available runway, obstructions and single engine climb capabilities. If there's a major problem before V1, you reject the takeoff, which we also rehearse. If something happens after V1, you continue with very few exceptions. The non flying (monitoring) pilot calls "V1" as the airspeed approaches it.

It's actually kind of fun. Much like steering the paraglider with a 50% wing collapse. With the paraglider, if done right, with the just the right amount of input, it looks effortless. Same with the Boeing. And it feels good when you're all "cleaned up", climbing at the right speed and spot on heading (or turn when required).

Flying through the V1 cut is a challenging maneuver made harder by the lack of any vertical G force—a pilot's "seat of the pants." Simulators can't reproduce that sensation whatsoever. Flying airplanes transfer even the smallest control column pull or push into changing pressures on the body. Without that pressure, pilots must concentrate almost unnaturally on the instruments. That's why flying the simulator can humble even the best "sticks." I love the challenge but am respectful—I've watched two very capable pilots pull the airplane into an impossible climb or bank because of this, always when something else bad was happening. In the airplane, they would have nailed it. But the sim did them in.

The Machine

Every year, airline captains face the simulator twice (co pilots once). First is the checkride then, 6 months later, a training event. They are actually pretty much alike but the checkride has less "wiggle room." You must show your stuff during an evaluation. Training is generally more flexible and carries less stress. Fortunately I've never had to find out what failing either one is like but it does occasionally happen to very capable pilots. They get another chance but, continued struggle will result in job loss and, even worse, loss of their license. It's extremely rare but makes us take sim sessions very seriously. Plus, pilots naturally want to shine.



sim_view_maneuvering.jpg (41334 bytes) sim_view_ranier.jpg (57719 bytes) sim_view_runway.jpg (100653 bytes) Wendell_instructor_station.jpg (132515 bytes) Wendell_instructor_stationWorking.jpg (94996 bytes) sim_father+child.jpg (52824 bytes) sim_view.jpg (78310 bytes) 2007-02-19-DAL 016.jpg (58434 bytes)

swa_trainingCenter_bowels.jpg (186180 bytes) 2007-02-19-DAL 038.jpg (131020 bytes) SimBayAllSims_inset.jpg (105771 bytes) SimFeetLong.jpg (56918 bytes) BriefingRoom2.jpg (88783 bytes) interview_candidates.jpg (88472 bytes) pt_results.jpg (148784 bytes)

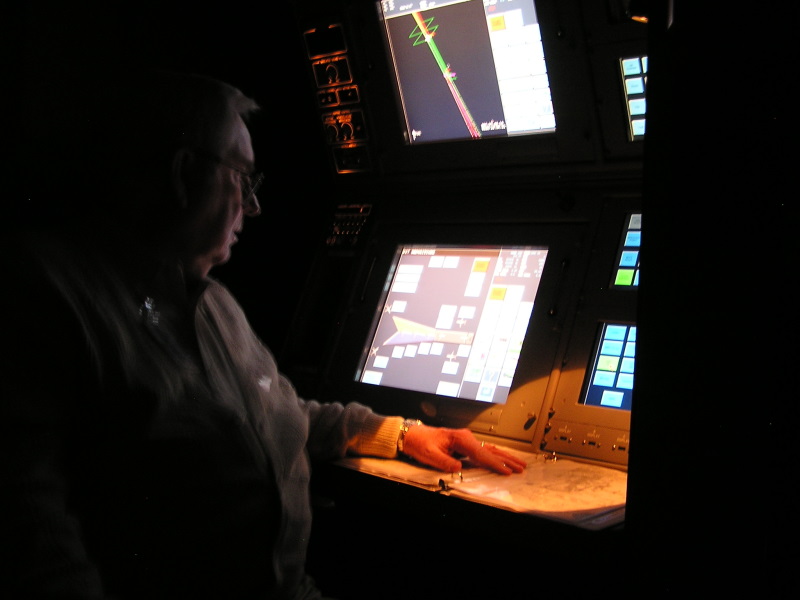

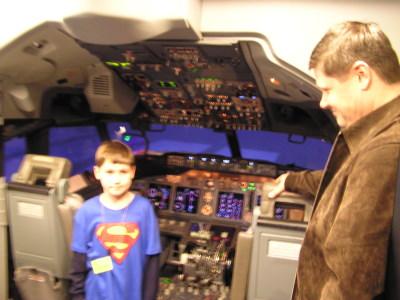

Row 1: 1-3) Milt handles a rudder hardover, climbs then mount Ranier pops into view. 4-5) Instructor Wendell, who spent 33 years as a pilot with Braniff, continues on as an instructor. He inflicts much pain from this panel. 6) Airline pilot father brings son in to see the sim. Now can you imagine being that kid? 7) The visual includes accurate portrayals of our gates. 8) This flight information display is a handy addition to the break room.

Row 2: 1) I didn't even this floor existed. It's below the sims. 2) Bundles and bundles of wires eminate from where the little wizard makes everything happen. 3 & 4) the Box and its catwalks and legs. 5) Hugely accurate graphics makes Wendells job easier as he pushes buttons on a paper computer display unit. 6) This group of interviewees were checking out the training center and interviewing. Good luck. They're all currently captains of something. 8) I passed!

The box itself is an extraordinarily accurate representation of one particular 737. I've been told that, if a change is made to that airplane, the change is made to the simulator that represents it. No two are exactly alike. I don't know if that's still the case given our growing fleet of sims.

The software to run these behemoths must be fine tuned to accurately replicate flight including noises and sensations. While the sim cannot reproduce vertical G's, it can shake, rattle and roll—leaving you immersed in the sensations of flight.

The instructor station lets him save points in time, dole out emergencies, erroneous instrument readings and a host of other evils. It records pilot input and flight path for analysis if necessary. After bad things happened in real airplanes, investigators usually try to duplicate the scenario in one of these advanced simulators to improve understanding and test hypothesis.

Stress Relief

Being prepared helps in many ways. Mostly it reduces stress. There are memory items to be refreshed and systems/procedures knowledge to bone up on. Changes to standard operating procedures (SOPs) are endemic and this is a good opportunity to review them.

The airlines have done an exceptional job of identifying risk areas and rehearsing to reduce them. It's always a cost/benefit battle because we could spend twice as much time in the box and not cover every possible event. For example, one unique thing we did on this session had to do with unusual attitude recovery. Besides the usual "decrease angle of attack before righting the roll" (rolling the Boeing is, by the way, almost trivial) we did another exercise. He put in a rudder hardover, meaning the rudder moved to it's maximum hydraulic authority without pilot input. Let me tell you, that does a lot more than yaw the nose! The airplane first swings then rolls abruptly. You can counter it with the control wheel at high speed but it takes quite a bit. Using a bit of spoiler reduces the necessary roll input. Use some opposite throttle and it requires even less. Just for grins, I slowed all the way down to a 150 knot, 700 fpm stabilized descent at full flaps just to see how that felt. Very enlightening but I sure hope it never happens. The touchdown would be sporty at best. To my knowledge, it has NEVER happened in a 737 so this was mostly academic.

Swapping Seats

The senior guy usually goes first and, in our case we had two captains so we had to change seats. After spending a lot of time in the left seat, making captain calls and moves, it's surprising how challenging it is to swap seats. We muddle through it well enough.

Sim sessions are in three parts: briefing, pilot 1 session then pilot 2 session, with each segment lasting 2 hours. So the total sim time is 4 hours.

It's very much a two man cockpit. If the flying pilot is not doing something he should, the monitoring pilot is expected, either verbally or by hand motion, to let him know. Putting a hand to the gear lever, flap lever or making the requisite call-outs is as important in the simulator as it is on line. And even if your "ride" is over, don't just sit there. One time, after my checkride was "done", the FO was doing a takeoff when something happened. I immediately rejected. Then I felt bad because I thought it was a mistake since I was done with my portion. Not so, he did it intentionally just for that reason. Fortunately I did the right thing by rejecting. Such extras are rare because of how packed these sessions have become. We were obviously ahead of the clock.

The Training Center

I've seen our airline triple in size since I arrived. The facility has necessarily kept pace and even improved dramatically, in size, comfort and effectiveness. Southwest works hard to create an inviting atmosphere and it's helpful. So far, all of my 26 visits to the training center have been enjoyable.

swa_MuralPanoTrainingCenter.JPG (114297 bytes)2007-02-19-DAL 026.jpg (116543 bytes)sim_building.jpg (135192 bytes)swa_trainingCenter_charts copy.jpg (705613 bytes)2007-02-19-DAL 007.jpg (89581 bytes)2007-02-19-DAL 024.jpg (93985 bytes)mm.jpg (48852 bytes)2007-02-19-DAL 028.jpg (63931 bytes)

1) An artist painted this gorgeous mural in the main foyer and break room area.

2) Classrooms feature projected video and audio with a new testing technology that allows each student to answer test questions by pressing a button on a remote. Monitors below the tables are no longer used. Oh how technology changes, those monitors went obsolete within 3 years.

3) The building was expandable and has now been expanded. It can accommodate 4 more sims.

4) Someday we'll look at this room saying "I remember when we had paper charts." The electronic flight bag is slated to replace our current charts by the end of 2008. No more Jeppesen revisions. This room has current copies of every required chart carried by each pilot. Airports typically have about 8 pages and we serve over 60 airports.

5) Several former astronauts fly for Southwest. When I was looking for work I would joke that "It's gotten easier to hire onto an airline. Where it used to take at least three moon landings, now a few laps around the planet will suffice."

6) This 6 foot wingspan model hangs over the main stairway leading to 2nd floor which is where you go for all training.

7) Priorities. Never, ever forget the chocolate!

8) New hires are interviewed here.

The building itself is impressive beyond first impressions. The simulator bays have a concrete floor to support the pylons that exert enormous force as pilots are tossed about reining in their various emergencies.  Until this visit, I thought that was the bottom of the building. But this time I was scouring for pictures and wandered into the bowels. Deep they go! Turns out there's an entire extra floor beneath the simulators. There are computer rooms, one behind each simulator, that run the works.

The building has been recently expanded and looks like it can accommodate probably 4 more sims. That makes sense, the airline is growing at about 10% per year which, if it continues, will make it the largest U.S. Airline within about 5 years. It's already the largest by several measures.

The Experience

It's all perspective, I suppose. It'll definitely be less fun if age or other problems make it a struggle. It's work, to be sure, and checkrides carry a healthy trepidation that gets you soundly into the books. That's some of what it's for.

I've been at companies where training was a far more threatening environment and that was not fun. I learn more in this environment and suspect that other do too. On several occasions, primarily during training events, I've accepted the offer to do other things that we don't normally get to practice. I've done 3 double engine out landings from altitude and a manual reversion where there was no hydraulics at all. Very enlightening. It would be fun to someday go in without the job pressure but alas, at a huge hourly cost and tight schedule, they don't allow that. Too bad.

I'll just have to make do with opportunities as they come up and hopefully will feel comfortable taking advantage of them. I'm glad too have the chance!




3000 PSI hydraulics surge through these hoses and actuators to move the simulator up and down, back and forth while swiveling left/right and pitching fore/aft. As impressive as that sounds, it cannot simulate vertical G loading, a critical pilot input. Horizontal G loading is simulated using tilt. If you hit the brakes, the sim quickly moves backwards as it tilts downward so the occupant feels like he's being thrown forward by the brakes. It's quite effective in that regard.









Milt (right) was the senior guy and went first. Then we swapped and I took my turn at the helm.









We have an ingeniously designed Quick Reference Handbook that can quickly guide pilots through complicated problems. It is laid out for quick access and obvious interpretation and is vastly improved from when I first arrived at the airline. Most emergency situations start with "Pleas run the xxx checklist."



Phoenix flight operations developed a nearly identical-looking Quick Recipe Handbook to improve emergency culinary creations.











Ping pong anyone? Ever since I can remember there's been a table setup in the break room. Simulators are just behind those windows.
